EAGLE-bunks

High strength steel bunks with detachable stakes for timber transport. EAGLE 75 is 7-ton capacity bunk and EAGLE 95 is 9-ton capacity bunk where also load tightener can be included.

The bunks are easy to install with their own fixings to trucks or trailers, without any drilling or welding. The weight on EAGLE-series varies between 147-166 kg/ bunk including two stakes without separate bunk fixings.

EAGLE 75

The Eagle 75 is a heavy-duty steel bunk with a capacity of 7 tons. Removable stakes as standard.

Material High strength steel with wear resistant surface treatment
Weight From 147 kg + ca. 20 kg for fixings
Bunkframe length 2 550mm or 2 600 mm
Bunkframe height 140 mm
Bunkframe inner dimension 2 370 mm or 2 420 mm
Height of stakes Max. 3 300 mm
Downloads

EAGLE 95

The Eagle 95 is a 9 tonne steel bunk with removable stakes as standard.

Material High strength steel with wear resistant surface treatment
Weight From 156 kg + ca. 20 kg for fixings
Bunkframe length 2 550mm or 2 600 mm
Bunkframe height 150 mm
Bunkframe inner dimension 2 350 mm or 2 400 mm
Height of stakes Max. 3 350 mm
Downloads

EAGLE 95T

The Eagle 95T is a 9 tonne steel bunk with removable stakes as standard and an integrated load tightener.

Material High strength steel with wear resistant surface treatment
Weight Complete bunk with 3250 mm stakes and friction fixings ca. 210 kg
Bunkframe length 2 550mm or 2 600 mm
Bunkframe height 150 mm
Bunkframe inner dimension 2 350 mm or 2 400 mm
Height of stakes Max. 3 350 mm

Features of Eagle bunks

Design

The streamline modern design gives the Eagle Bunks a contemporary look. The standard colors of the bunkframe are anthracite gray and carmine red, and the standard color for the stakes are silver gray. The Eagle bunk can also be painted according to your wishes.

Technology

The Eagle bunks are easy to install to different chassis width accordign to the measurement scale included with their own fixings, without any drilling or welding.

They are also equipped with attachment capabilities.

Practicality

As a steel bunk, Eagle is practical as it is the only steel bunk on the market where the stakes are removable.

Deliveries and maintenance are therefore cost effective.

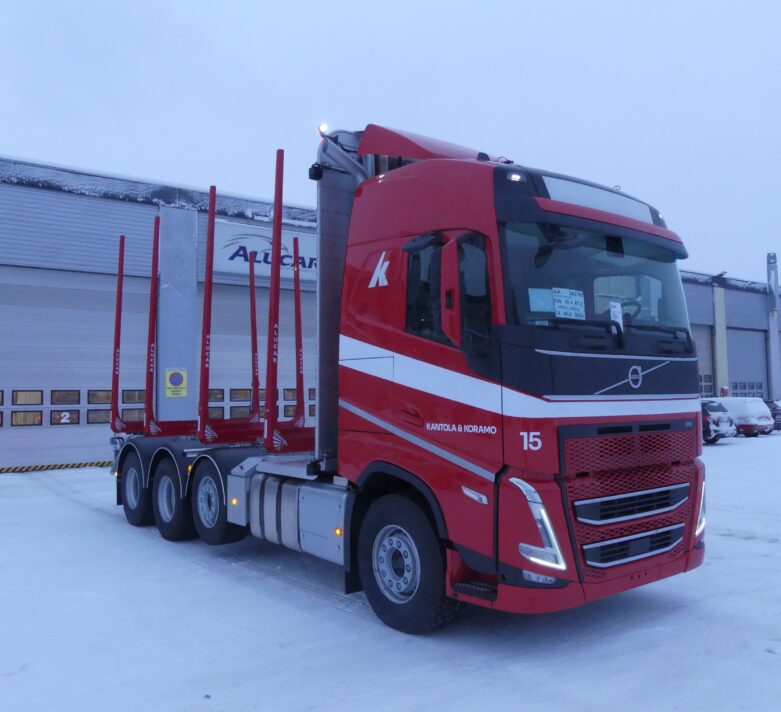

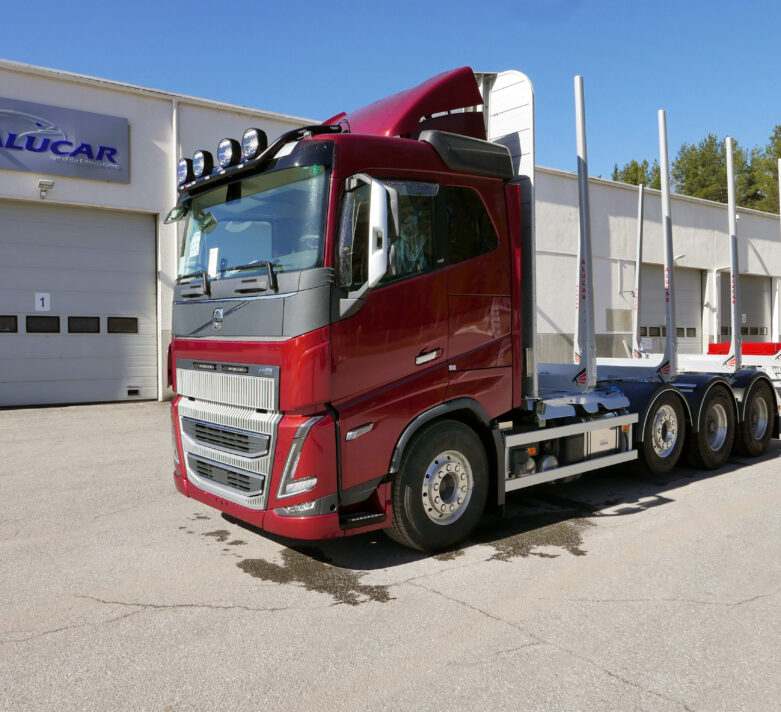

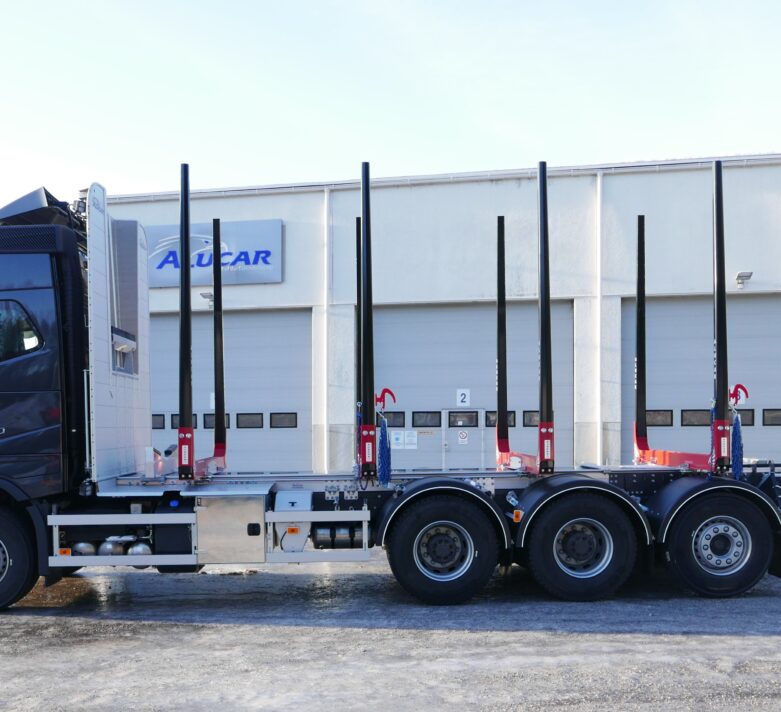

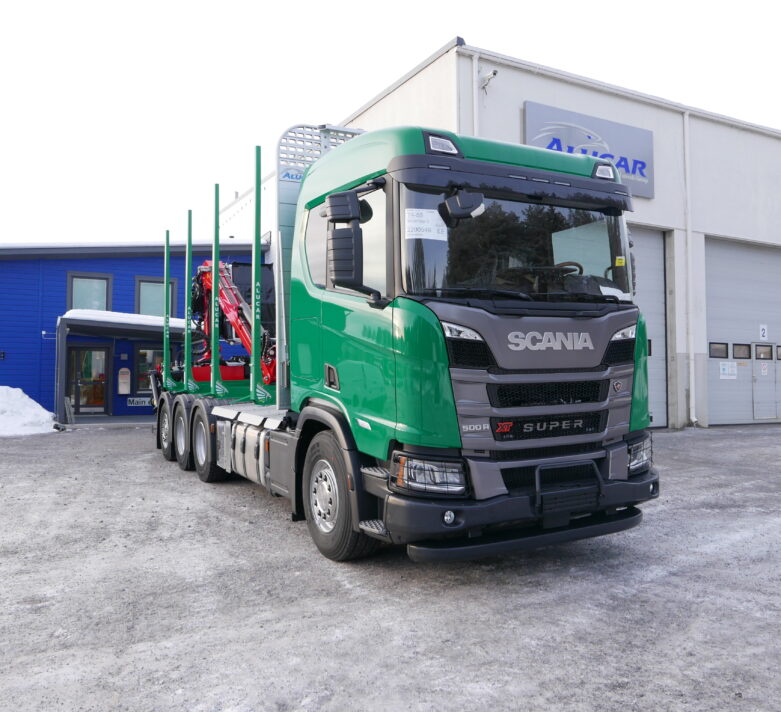

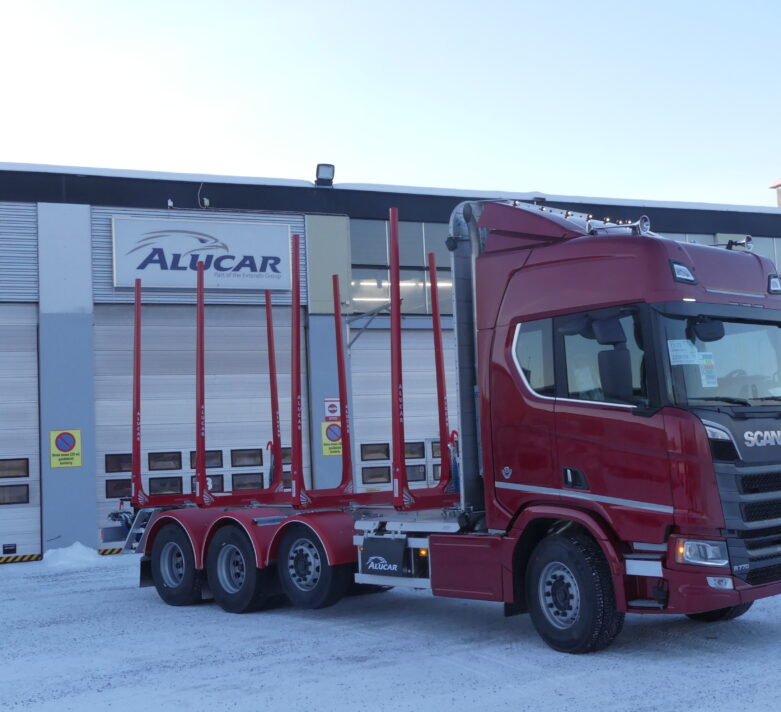

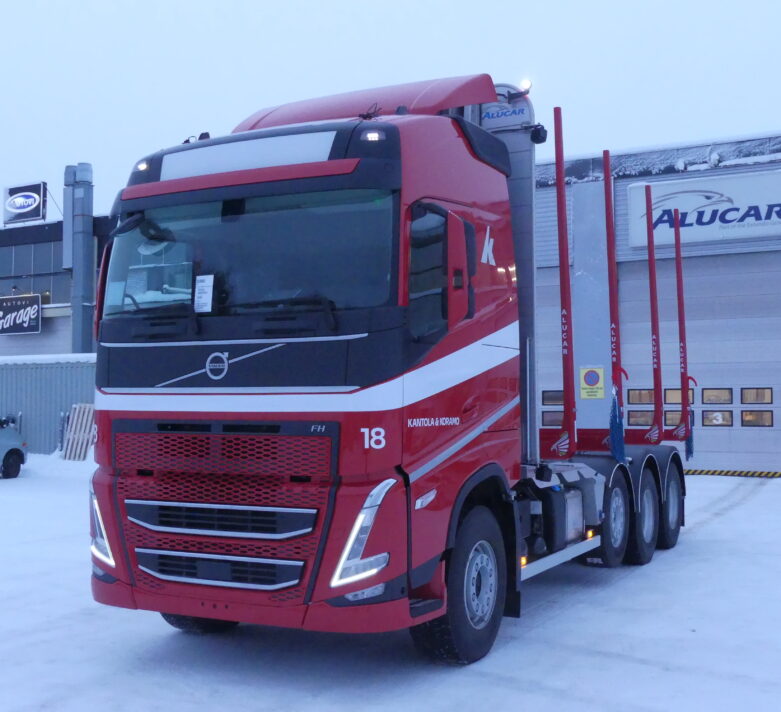

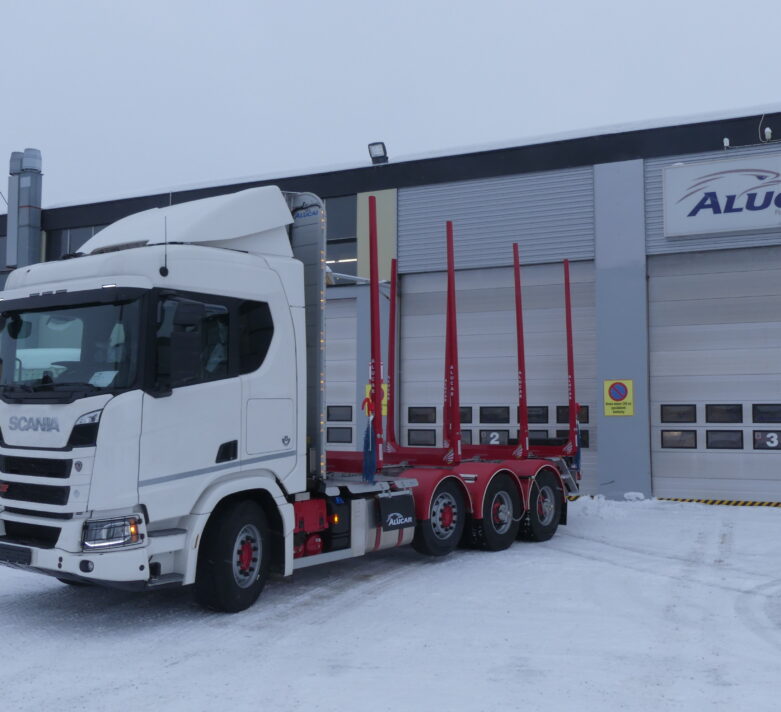

Also these trucks were equipped with Eagle bunks
